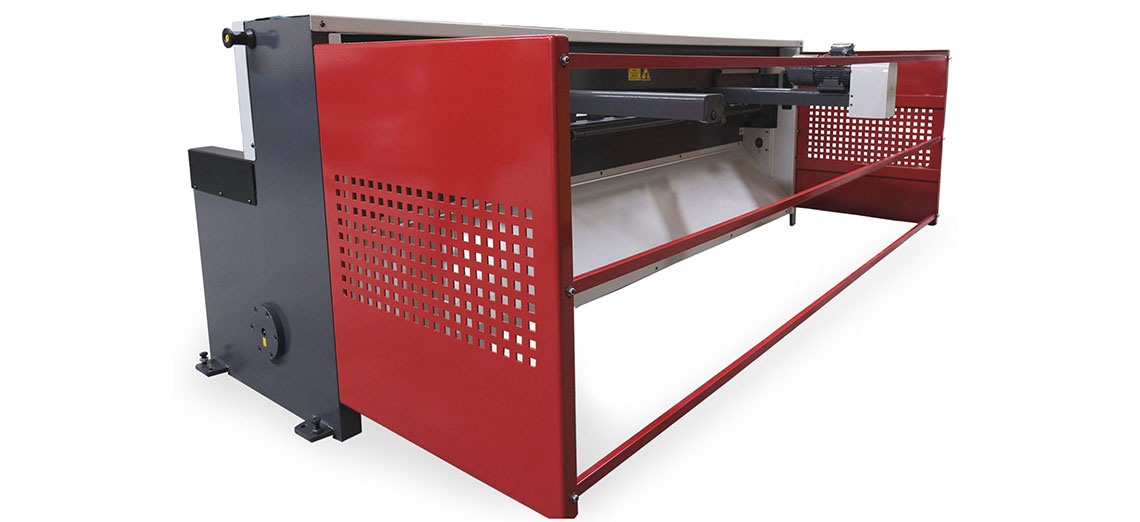

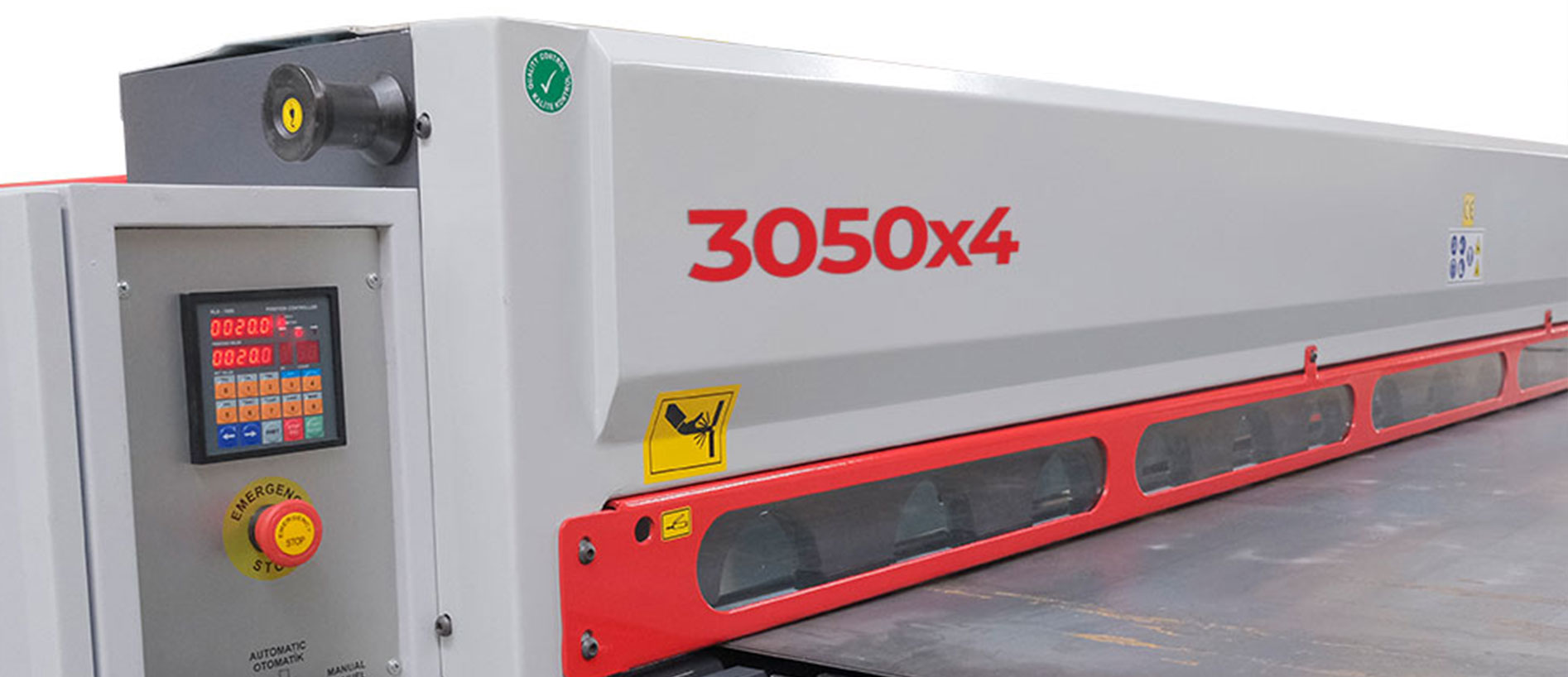

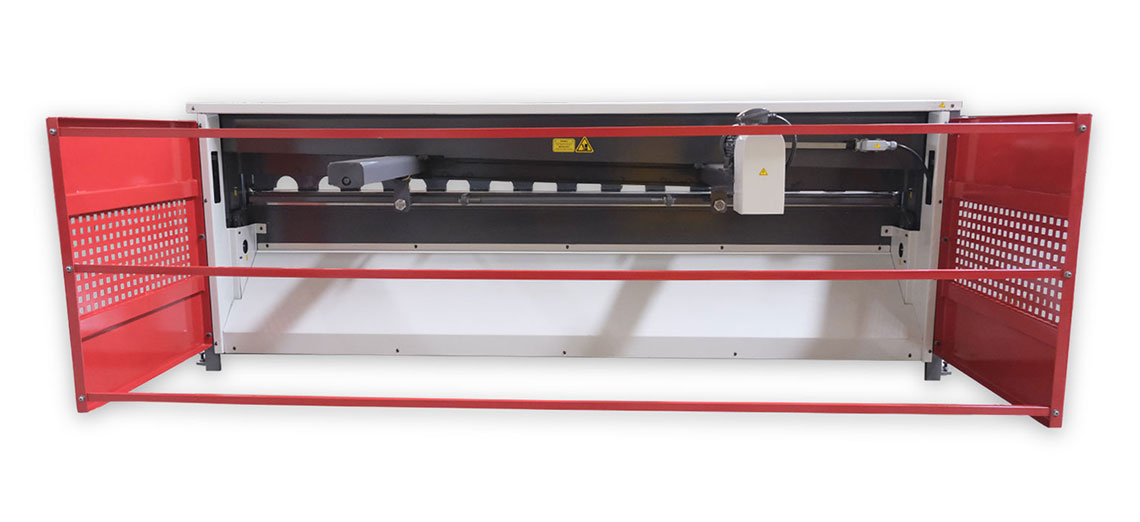

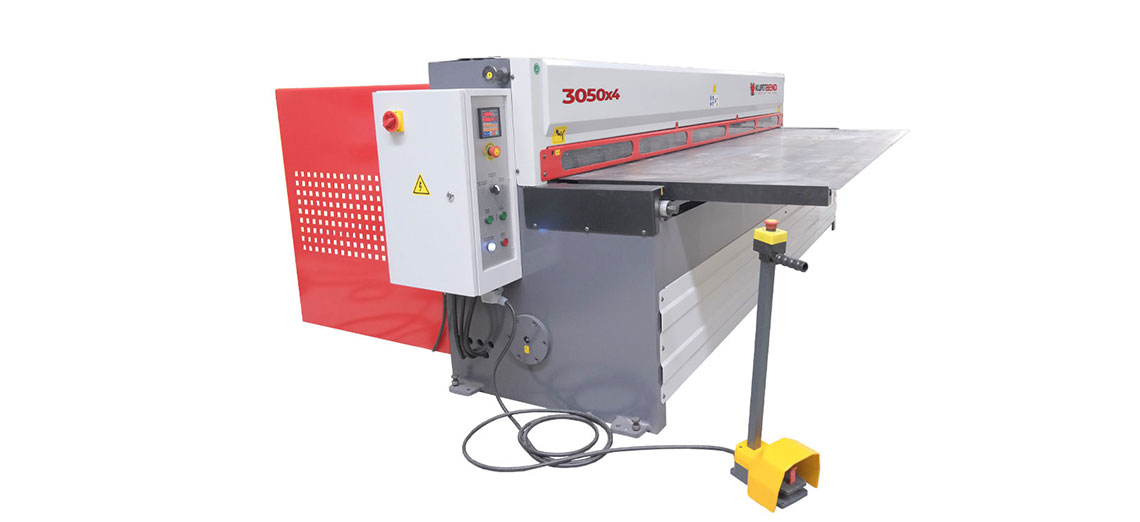

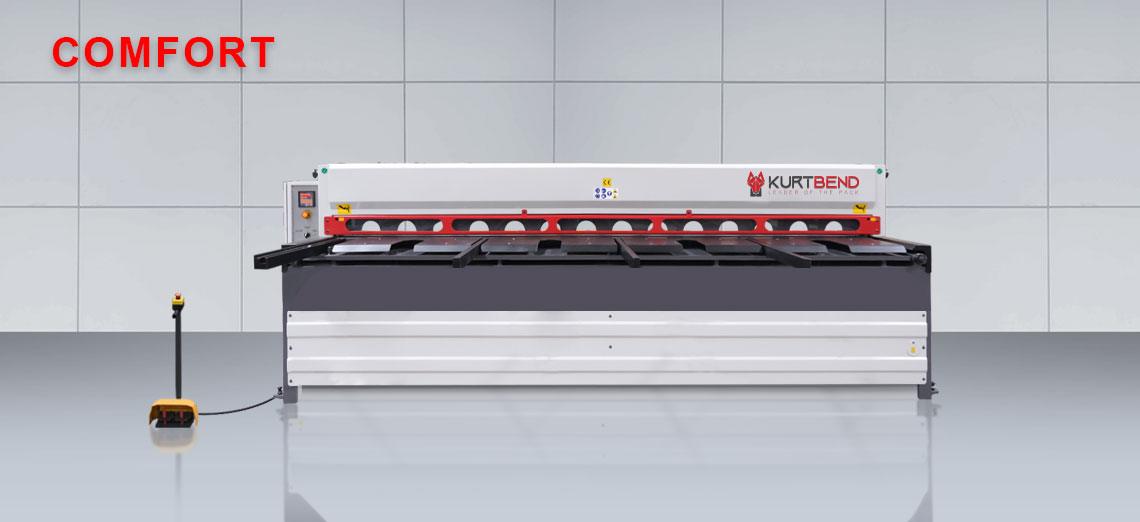

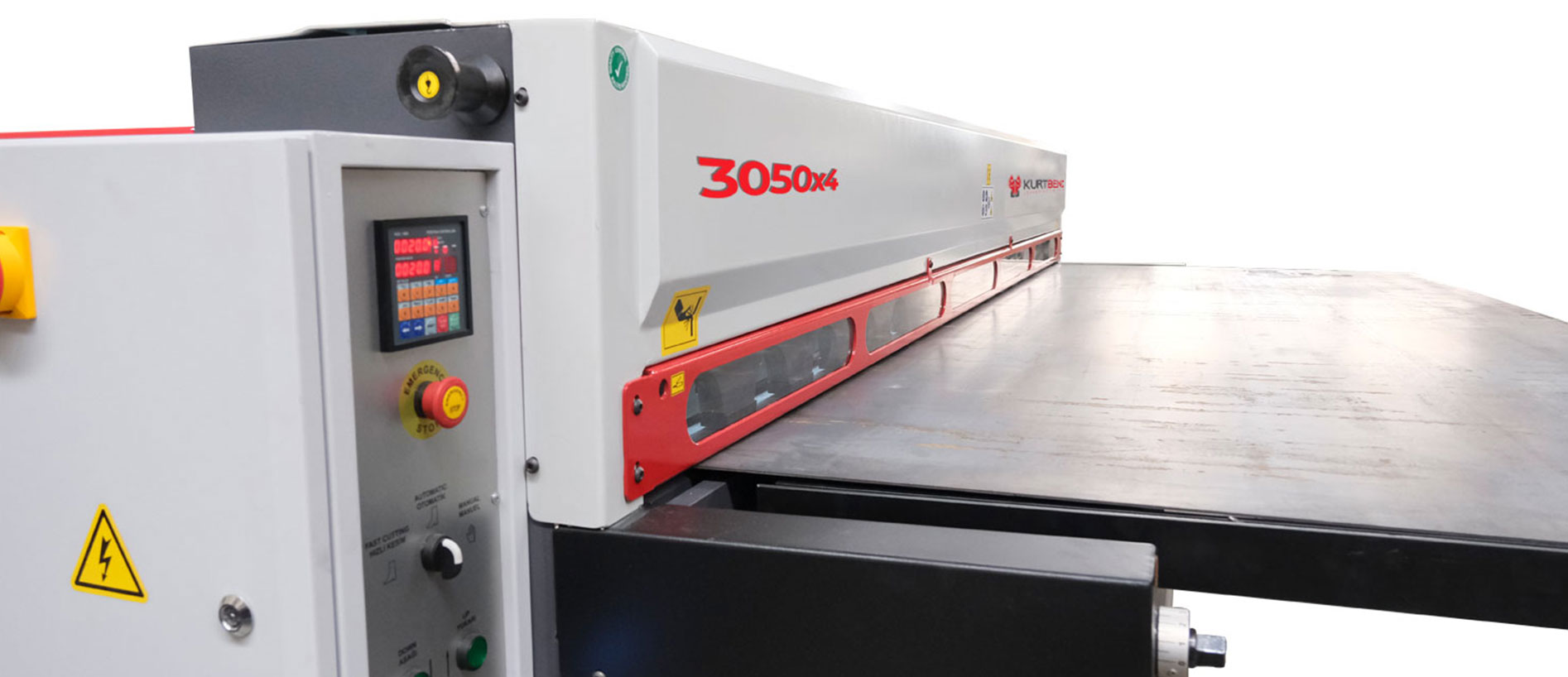

COMFORT SERIES GUILLOTINE SHEAR

COMFORT SERIES GUILLOTINE SHEAR

  • Comfort Series Geared Mechanical Shears are suitable for cutting sheet metal from 0.15mm to 6mm thick.
  • Welded steel construction chassis
  • Multi-bladed upper and lower blades
  • Teflon slide upper cutting jaw with long life on both sides
  • Easy-to-maintain clutch system
  • Easy adjustable feeler setting
  • Mechanical pressure system that prevents the sheet from slipping during cutting
Type Cutting Capacity Cutting Length Cutting Angle Cuts Per Minute Table Length Table Height Table Width Stop Movement Distance X Axis Machine Dimensions Motor power Weight
Thickness
mm A Degree (°) d/dk B C D mm Length x Width x Height (FxGxH) kW Kg
mm mm mm mm mm
Comfort 1002 2 1050 2,3 30 1325 800 410 600 1685 1302 1123 2.2 700
Comfort 1302 2 1350 2,3 30 1625 800 410 600 1985 1302 1123 2.2 800
Comfort 1502 2 1550 2,3 30 1825 800 410 600 2185 1302 1123 2.2 950
Comfort 2002 2 2050 1,5 30 2325 800 410 600 2685 1302 1123 3 1250
Comfort 2502 2 2550 1,5 30 2825 800 410 600 3185 1302 1123 3 1750
Comfort 1003 3 1050 2,3 35 1355 800 520 600 1720 1575 1230 3 1100
Comfort 1303 3 1350 2,3 35 1655 800 520 600 2020 1575 1230 3 1350
Comfort 1503 3 1550 2,3 35 1855 800 520 600 2200 1575 1230 3 1600
Comfort 2003 3 2050 1,5 35 2355 800 520 600 2720 1575 1230 3 1900
Comfort 2503 3 2550 1,5 30 2855 800 520 600 3220 1575 1230 4 2200
Comfort 3003 3 3050 1,5 30 3355 800 520 600 3720 1575 1230 4 2500
Comfort 3503 3 3550 1,3 30 3855 800 520 600 4220 1575 1230 5,5 3500
Comfort 4003 3 4050 1,2 30 4355 800 520 600 4720 1575 1230 5,5 4750
Comfort 1004 4 1050 2,3 30 1355 800 530 600 1720 1630 1230 4 1800
Comfort 1304 4 1350 2,3 30 1655 800 530 600 2020 1630 1230 4 2150
Comfort 1504 4 1550 2,3 30 1855 800 530 600 2220 1630 1230 4 2350
Comfort 2004 4 2050 1,5 30 2355 800 530 600 2720 1630 1230 7.5 2850
Comfort 2504 4 2550 1,5 30 2855 800 530 600 3220 1630 1230 7.5 3350
Comfort 3004 4 3050 1,5 30 3355 800 530 600 3720 1630 1230 7.5 3850
Comfort 3504 4 3550 1,3 30 3855 800 530 600 4220 1630 1230 7.5 4650
Comfort 4004 4 4050 1,2 30 4355 800 530 600 4720 1630 1230 7.5 5500
Comfort 1005 5 1050 2,3 30 1355 800 530 600 1720 1630 1230 7.5 1900
Comfort 1305 5 1350 2,3 30 1855 800 530 600 2020 1630 1230 7.5 2250
Comfort 1505 5 1550 2,3 30 1855 800 530 600 2220 1630 1230 7.5 2500
Comfort 2005 5 2050 1,5 30 2355 800 520 600 2720 1630 1230 7,5 3000
Comfort 2505 5 2550 1,5 30 2855 800 530 600 3220 1630 1230 7.5 3500
Comfort 3005 5 3050 1,5 30 3355 800 530 600 3720 1630 1230 7.5 4000
Comfort 1006 6 1050 2.3 30 1355 800 530 600 1720 1630 1230 7.5 2000
Comfort 1306 6 1350 2,3 30 1655 800 530 600 2020 1630 1230 7.5 2350
Comfort 1506 6 1550 2,3 30 2355 800 530 600 2220 1630 1230 7.5 2600
Comfort 2006 6 2050 1,5 30 2355 800 530 600 2720 1630 1230 7.5 3200
Comfort 2506 6 2250 1,5 25 2855 800 530 600 3220 1630 1230 11 3750
